DIRECTIONAL BLADE
The built-in options make the GRYB directional blade perfect for clearing snow from public roads. Set the direction of the blade, and the snow will be pushed to the side. The directional blade is equipped with a shock-absorber system. Available with ground levelling and swivelling systems.
- Anti-shock valve.
- Optimal scraper design for efficient snow removal, facilitating the movement of machinery.
- Multiple section configurations (standard or HD).
- HD cylinders with nitrided rod.
- HD harness with floating system.
- Interchangeable wear parts.
- 2 bolt-on wear heels.
- Corner protectors.
- High-strength steel blades.
- Visibility flags.
Product Specifications
|
Specification |
Unit |
DL08-36 | DL10-44 | DL12-44 | DL14-44 | DL16-44 |
|---|---|---|---|---|---|---|
| Clearing Width | PI | 8 | 10 | 12 | 14 | 16 |
| Height | IN | 36 | 44 | 44 | 44 | 44 |
| Optional mechanical swivel earpiece | IN | - | - | 30 | 30 | 30 |
| Fixed mechanical ears | IN | 36 | 44 | 44 | 44 | 44 |
| Number of triggers | STANDARD (HD) | 3 (NA) | 3 (5) | 3 (6) | 3 (6) | 3 (8) |
All types of backhoes and wheel loaders.
- Additional bolt-on wear heels.
- Harness compatible with side wing.
- Cutting edge with carbide inserts.
- De-icing cutting edge.
- Rigid bolt-on side panels.
- Mechanical swivel bolt-on side panels (for 12-feet models and larger)

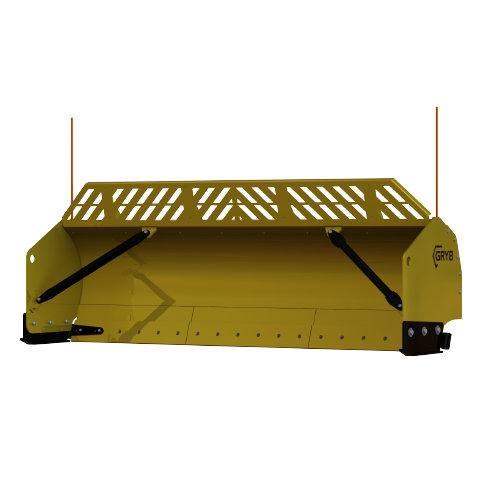

- Bolt-on spill guard.
