Tiltrotators For Excavators

GTR Tiltrotators

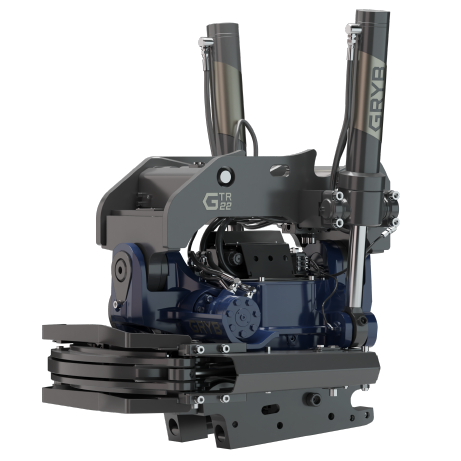

The GRYB Tiltrotator is an extension of the arm, allowing you to tilt and/or rotate any bucket/attachment you connect to it. It features a grease-lubricated gear case, constant 360° rotation, and 40° tilt in all directions. The tiltrotator can be mounted on the quick coupler or directly on the excavator's arm. The ease of maneuvering the tiltrotator using a joystick and rocker switch allows the operator to easily and efficiently perform advanced and precision work without having to move the machine. It also makes the work environment safer, both for the operator and for people working near the machine. The GTR Tiltrotator is equipped with double-acting cylinders for tilting.

Tilting 2 x 45°
Infinite rotation 360˚
Integrated Grip Module
Grease-filled gear housing
12/24V DC - Hardlock® coupler
Load holding cylinders
Rotation and tilt sensors
Robust critical components

catalog

Selling sheet

Get a quote

Product Specifications

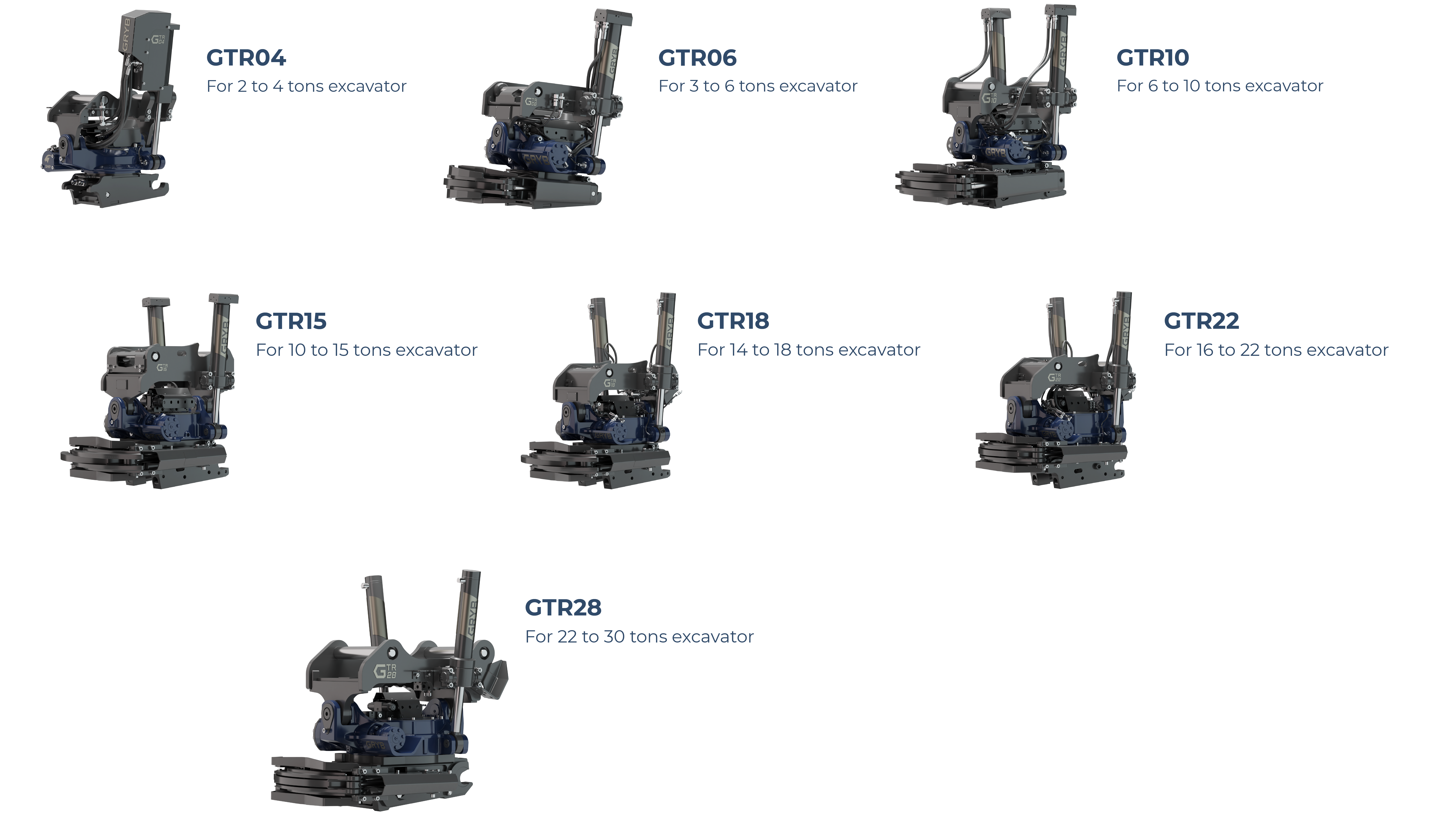

Model	Machine Weight (tons)	Approx weight (lbs)	Dimensions A / B / C / D (inches)	Recommended max oil flow (GPM)	Working pressure max (psi)	Tilt torque at 3'000PSI / 21 Mpa (lb/ft)	Rotation speed (sec/rotation)	Turn torque (lbs/ft)	Max breakout torque (lbs/ft)	Max breakout force (lbs)	Max bucket width (in)
GTR-04	2 to 4	216	28 / 18 / 13 / 17	16	3046	2876	7	2212	--	8992	42
GTR-06	3 to 6	330	28 / 19 / 14 / 16	21	3046	9072	7	3687	32453	11241	52
GTR-10	6 to 10	518	34 / 23 / 17 / 24	26	3046	18660	7	3687	55317	15737	56
GTR-15	10 to 15	816	36 / 29 / 18 / 26	26	3046	25151	7	5162	105,471	24729	60
GTR-18	14 to 18	1080	36 / 30 / 20 / 32	32	3046	33928	7	4425	136	29225	72
GTR-22	16 to 22	1080	39 / 33 / 24 / 33	32	3046	38353	7	5162	170	33722	80
GTR-28	22 to 30	1,653	43 / 40 / 26 / 34	32	3046	39091	7	5,162	228,644	40,465	79
